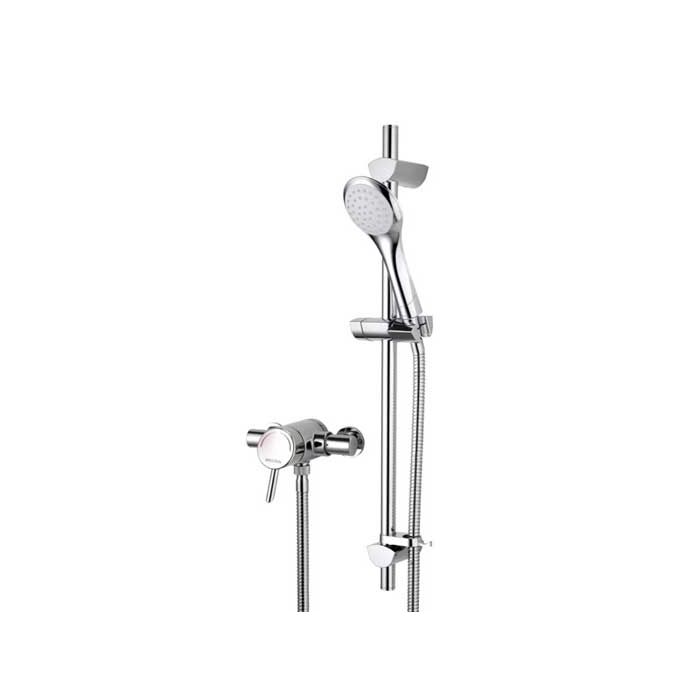

Acute Exposed Shower with Adjustable Riser

Specifications

• Measurements of valve: (depth) 113mm (height at rear) 58mm
• Valve: (height) 100mm (width) 175mm (adjusable) 110-155mm
• Riser Rail: (height) 660mm
• Handset Length: 200mm (width) 87
• Finish/Colour: Chrome Plated
• Main Construction Material: Brass
• No of Controls: 1
• Shower Type: Sequential Mini Valve
• Shower Head Type: Single Function Handset
• Shower Kit: Adjustable Riser
• Valve/Cartridge Type: Sequential Cartridge
• Maximum Hot Water Supply Temperature OC: 65
• Minimum Dynamic Pressure (bar): 0.1
• Maxi8mum Dyhnamic Pressure (bar): 5
• Maximum Static Pressure: (bar) 10
• Connection Inlet: 15mm Compression
• Connection Outlet: G 1/2”
• Isolation Valve Included: No
• Check Valve Included: No
• Range: Acute
• WRAS Product Certifications
• 5 year guarantee

Features

• All in one box - pack includes shower valve, hose, hose retainer, adjustable riser rail and a rub-clean anti-limescale single function handset so nothing to buy separately
• Easy installation with adjustable elbow inlets which enable you to use on existing pipework centres between 110mm and 155mm so there’s no need for retiling
• Adjustable fixing brackets on riser rail enables existing screw holes to be used
• Rub clean handset - limescale and debris build-up is quickly and easily removed by rubbing a finger or a cloth over the nozzles.
• A hard-wearing, flawless, scratch resistant chrome finish that lasts for years. Salt spray tested to ensure added durability.

Flow Rates Valve Onhly/Largest FR (l/min)

• 0.1 bar - 2.1 (l/min)
• 0.5 bar - 5.4 (l/min)
• 1 bar - 8 (l/min)
• 2 bar - 12.1 (l/min)
• 3 bar - 15.3 (l/min)
• 5 bar - 21.3  (l/min)

Flow Rates Through Handset (l/min)

• 0.1 bar - 2.1 (l/min)
• 0.5 bar - 5.4 (l/min)
• 1 bar - 8 (l/min)
• 2 bar - 12.1 (l/min)
• 3 bar - 15.3 (l/min)
• 5 bar - 21.3  (l/min)

Flow Rates with Flow Limiters (l/min)

• 0.1 bar - 1.6 (l/min)
• 0.5 bar - 4.1 (l/min)
• 1 bar - 6 (l/min)
• 2 bar - 7.9 (l/min)
• 3 bar - 8.4 (l/min)
• 5 bar - 8.6  (l/min)
